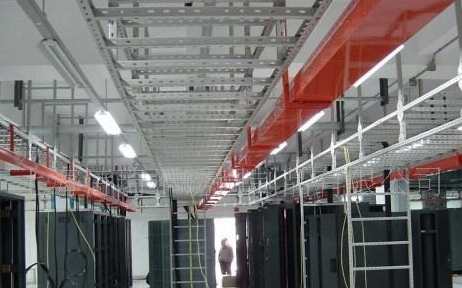

Cable bridge, after all, in our life, we can often see cable bridge or polymer cable bridge, polymer and steel lining with the organic combination of steel plastic coextrusion technology. The bridge has strong bearing capacity, anti-corrosion and flame retardant, deformation resistance and other characteristics, which are widely used in electric power, steel, chemical industry and so on.

　　分子結構橋接詳圖

　　Molecular bridge details

　　1.橋式阻燃劑，阻燃等級≥36%。

　　1. Bridge flame retardant, flame retardant grade ≥ 36%.

　　2.支撐點間距6m，剛度<30mm，電纜橋架注意連接件、伸縮件、寬度調節件、高度調節件等注意事項均采用高韌性耐腐蝕原材料，考慮支撐點抗壓強度。

　　2. The distance between supporting points is 6m, and the rigidity is less than 30mm. Attention shall be paid to the connection parts, expansion parts, width adjusting parts, height adjusting parts, etc. of the cable bridge. High toughness and corrosion-resistant raw materials shall be used, and the compressive strength of supporting points shall be considered.

　　3.連接電纜橋架固定支架中間連接地腳螺栓的連接板的支撐點應與固定支架、支撐臂等結構的抗壓強度一致。固定支架梯側連接地腳螺栓邊緣應光潔，電纜線拖拽時不應損壞電纜線。

　　3. The supporting point of the connecting plate connecting the anchor bolt in the middle of the fixed support of the cable tray shall be consistent with the compressive strength of the fixed support, support arm and other structures. The edge of the connecting anchor bolt at the fixed support ladder side shall be smooth and clean, and the cable shall not be damaged when dragging.

　　4.選用電纜橋架后蓋板一次或兩次成型，耐紫外線、耐腐蝕，并配有鎖緊、夾緊裝置。

　　4. The rear cover plate of cable bridge shall be formed once or twice, resistant to ultraviolet and corrosion, and equipped with locking and clamping devices.

　　5.電纜橋架由高分子防腐復合材料制成，其結構包括金屬材料框架層、粘結層、保護層厚度，以及主要的分子結構防腐阻燃層。它具有重量輕、抗壓強度高、承載力和抗變形能力強的特點。電纜橋架云梯和橫檔內孔采用獨特的不銹鋼封頭設計，所有部件不接觸金屬材料。

　　5. The cable tray is made of polymer anticorrosive composite material, and its structure includes metal frame layer, bonding layer, thickness of protective layer, as well as anticorrosive and flame retardant layer of main molecular structure. It has the characteristics of light weight, high compressive strength, strong bearing capacity and deformation resistance. The cable tray ladder and the inner hole of the rail adopt the unique stainless steel head design, all parts do not contact the metal materials.

　　6.電纜橋架的實心結構包括金屬材料框架和高分子材料防腐蝕層。金屬材料框架看起來與托盤的橫截面相同

　　6. The solid structure of cable tray includes metal frame and polymer anti-corrosion layer. The metal frame looks the same cross section as the tray

　　總寬度>200mm不銹鋼厚度≥1.8mm。金屬表面層采用獨特的軟塑料粘接層解決，避免因線膨脹系數不同而導致金屬材料骨架與主防腐層分層。

　　Total width > 200mm, stainless steel thickness ≥ 1.8mm. The metal surface layer adopts a unique soft plastic adhesive layer to avoid delamination of the metal material framework and the main anti-corrosion layer due to different linear expansion coefficient.

　　7.電纜橋架除金屬材料框架外，還應有主防腐層，一側的防腐層厚度≥2.b250m。規定主要防腐蝕層、粘結層和保護層的厚度。外主防腐蝕層必須有高密度、防破壞的帶反射面紫外線防護層厚度。表面光潔美觀，提高抗老化能力和使用壽命。

　　7. In addition to the metal material frame, the cable tray shall also have the main anti-corrosion coating, and the thickness of the anti-corrosion coating on one side shall be ≥ 2.b250m. Specify the thickness of main anticorrosive coating, bonding layer and protective layer. The outer main anti-corrosion layer must have a high-density, anti-destructive UV protective layer thickness with reflective surface. The surface is clean and beautiful, and improves the anti-aging ability and service life.

　　8.電纜橋架的所有內孔、連接面和連接孔均設有防止強侵蝕和強外力作用的對策。在酸、堿、鹽、氨等自然環境中應用不脆化、不褪色。

　　8. All internal holes, connection surfaces and connection holes of cable bridge are provided with countermeasures to prevent strong erosion and strong external force. In acid, alkali, salt, ammonia and other natural environment, it is not brittle and fade.

　　以上就是聚合物濟南電纜橋架的優點，相信本文的成果，可以讓您對電纜橋架有一定的了解和認識，希望以上內容能對您有所幫助。另外，如果你想了解更多相關信息，可以關注我們的網站。

　　The above is the advantages of polymer Jinan cable bridge. I believe that the results of this paper can let you have a certain understanding of cable bridge, and hope that the above content can help you. In addition, if you want to know more about it, you can follow our website.
